Boom barriers, also known as boom gates or barrier gates, play a critical role in controlling vehicle access at entry and exit points of various premises such as parking lots, toll booths, residential communities, commercial buildings, industrial zones, and high-security areas. With advancements in technology and diverse user needs, boom barriers have evolved into various types, each designed for specific functions and environments.

In this article, we will explore the different types of boom barriers, categorize them based on various parameters, and explain their features, advantages, and common use cases. Whether you're a property manager, parking operator, facility planner, or security specialist, understanding the different types of boom barriers can help you choose the right one for your needs.

1. What Is a Boom Barrier? A boom barrier is a type of access control system that uses a long arm (boom) to block or allow vehicular passage. It typically consists of: A boom arm (usually made of aluminum or steel) A control mechanism (manual or automated) A housing or cabinet that contains the motor and control board Optional accessories such as sensors, access control devices, warning lights, and signage Boom barriers can be manually operated or fully automatic, and are often integrated with systems such as RFID readers, ANPR cameras, ticketing systems, and IoT devices to enhance their functionality.

2. Classification of Boom Barriers Boom barriers can be classified based on various factors:

2.1 Based on Operation Mechanism I. Manual Boom Barriers Manual boom barriers require physical effort to operate. A person must lift and lower the arm using a lever or crank system. Features: Cost-effective and simple to install No electricity or complex controls Common in remote or low-traffic areas Common Uses: Rural parking lots Temporary construction sites Private road access points

II. Automatic Boom Barriers Automatic boom barriers use an electric motor and control system to operate. The boom arm lifts and lowers automatically, usually triggered by sensors or access control inputs. Features: Faster and safer operation Can integrate with access control systems (RFID, license plate recognition, etc.) Requires power supply and maintenance Common Uses: Urban parking areas Toll booths Airports, hotels, business parks

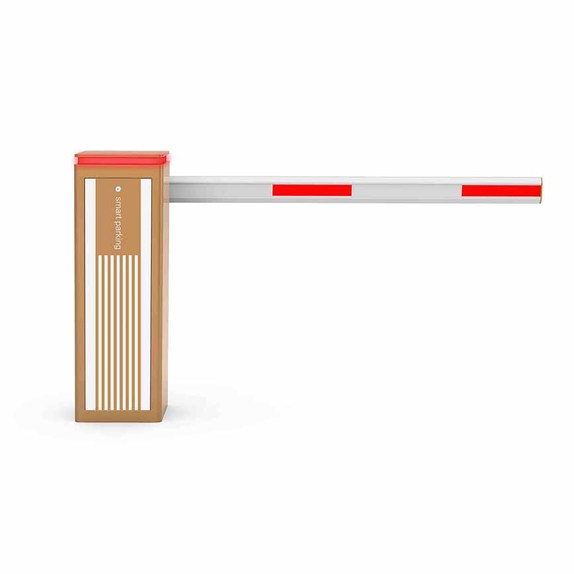

2.2 Based on Arm Type I. Straight Boom Barrier This is the most common and widely used boom barrier. It features a straight aluminum or steel arm. Advantages: Simple design Suitable for most applications Use Cases: Parking lots Highway toll stations

II. Articulated Boom Barrier (Folding Arm) These boom arms have hinges that allow the arm to fold in the middle, enabling them to be installed in low-ceiling areas like underground or basement parking lots. Advantages: Ideal for confined spaces Maintains access control in vertical-restricted environments Use Cases: Underground parking Basement entry points in buildings

III. Telescopic Boom Barrier This type has an adjustable or extendable arm that can be lengthened or shortened based on the driveway width.

Advantages: Flexible length for varying road widths Good for wide entrances Use Cases: Commercial vehicle checkpoints Temporary event areas

IV. Fence Boom Barrier Also known as a "barrier gate with lattice arm," this type includes a vertical fence under the boom arm that prevents pedestrians or motorcycles from passing under the arm. Advantages: Enhanced security Prevents unauthorized pedestrian crossing Use Cases: Airports High-security facilities Border control

2.3 Based on Control Technology I. Remote-Controlled Boom Barrier Operated by handheld remote devices, these are popular in residential or small commercial setups. Use Cases: Private villas Apartment complexes Small offices

II. Access-Control Integrated Boom Barrier Boom barriers integrated with: RFID readers, Biometric systems, Keypads, License plate recognition (ANPR), QR code scanners Use Cases: Smart city parking Corporate campuses Industrial estates

III. Sensor-Based or Automatic Detection Boom barriers that use vehicle detection sensors or ground loops to open/close when a car is detected. Use Cases: Toll plazas Parking garages with automated ticketing

2.4 Based on Application Environment I. Toll Boom Barriers Specially designed for high-speed and high-frequency environments. These barriers offer fast opening/closing (0.6–1 second) and high durability. Use Cases: Highway toll booths Expressway gates

II. Parking Lot Boom Barriers Typically integrated with parking management systems, these control the entry and exit of vehicles, often linked with ticketing or payment machines. Use Cases: Shopping malls Hospitals Airports

III. Industrial Boom Barriers Built for rugged use and often integrated with heavy-duty access control systems. Use Cases: Warehouses Logistics hubs Manufacturing plants

IV. Security Checkpoint Boom Barriers Heavy-duty and tamper-resistant, these barriers are often integrated with surveillance systems, under-vehicle scanners, and guards. Use Cases: Military bases Data centers Government buildings

2.5 Based on Power Source I. AC Boom Barriers Powered by alternating current (AC), these are standard in most commercial applications. Pros: High power Suitable for continuous use

II. DC Boom Barriers Powered by direct current (DC), often with battery backup. Pros: Safe in power outages Energy-efficient Suitable for residential and medium-traffic areas

III. Solar-Powered Boom Barriers Operate using solar panels and battery systems. Pros: Eco-friendly Ideal for remote areas without stable power

1. Key Components of an Automatic Boom Barrier Understanding the components helps to differentiate between barrier types: Boom Arm: The visible part that blocks passage. Housing Cabinet: Contains the control unit, motor, and mechanism. Drive Mechanism: Can be electromechanical or hydraulic. Control Unit: The brain that receives commands from access control devices. Sensors: Used for vehicle detection or safety (infrared or loop detectors). Safety Devices: Flashlights, alarms, or sirens for warning. Integration Devices: RFID readers, ticket dispensers, ANPR cameras, etc.

2. Future Trends in Boom Barrier Technology The boom barrier industry is evolving rapidly. Future-oriented features include: IoT Integration: Remote monitoring, diagnostics, and cloud-based control AI and Analytics: Smart traffic flow prediction and optimization Touchless Access Control: Using facial recognition or smartphone apps Energy Efficiency: Solar-powered or low-power DC operation Modular Design: Easily upgradeable systems with plug-and-play accessories

Conclusion Boom barriers have become a vital component of modern access control and traffic management systems. As infrastructure becomes smarter and more automated, the demand for boom barriers tailored to specific environments continues to rise.

To summarize, boom barriers can be broadly categorized based on: Operation mechanism (manual vs. automatic) Arm type (straight, articulated, telescopic, fence-type) Control technology (remote, sensor, integrated) Application (toll, parking, industrial, high-security) Power source (AC, DC, solar)

Each type of boom barrier offers unique benefits and is designed for specific operational needs. Whether you're managing a high-traffic toll station or a small residential entry, understanding these types will help you make informed, cost-effective, and secure decisions.
