In the world of injection molding, selecting the right material is critical to a product's performance, durability, and cost-effectiveness. Among the many material options available, EPDM rubber and thermoplastics are two widely used categories—but they serve very different purposes and behave quite differently during the injection molding process. This comprehensive guide explores the key differences between EPDM and thermoplastics in injection molding, comparing their physical properties, molding behavior, typical applications, cost considerations, and more. Whether you're a product designer, engineer, or manufacturer, understanding these differences can help you make better decisions when specifying materials for molded parts.

1. What Is EPDM? EPDM stands for Ethylene Propylene Diene Monomer, a type of synthetic rubber. It’s known for excellent weather resistance, flexibility, and resilience. EPDM belongs to the family of elastomers, which are polymers with viscoelasticity—commonly referred to as “rubbery” materials. Key Properties of EPDM: • Excellent UV and ozone resistance • High resistance to heat and cold • Superior weatherability • Outstanding flexibility and compressibility • Good electrical insulation properties • Inherently non-polar (resistant to water and steam) • Typically requires vulcanization (curing) to set

2. What Are Thermoplastics? Thermoplastics are a class of polymers that become soft and moldable when heated and harden when cooled—a process that is reversible and repeatable. They are among the most commonly used materials in plastic injection molding because of their versatility and recyclability. Common Types of Thermoplastics: • Polypropylene (PP) • Polyethylene (PE) • Acrylonitrile Butadiene Styrene (ABS) • Polycarbonate (PC) • Nylon (PA) • Polystyrene (PS) • Thermoplastic elastomers (TPE/TPU)

3. Injection Molding Process: EPDM vs. Thermoplastics The injection molding process varies significantly depending on whether you are using EPDM or thermoplastics. Molding EPDM EPDM is a thermoset elastomer, which means it does not melt but undergoes a chemical curing reaction (vulcanization) when heated. Once cured, it cannot be re-melted. Key Characteristics: • Requires rubber injection molding machines • Material is injected in an uncured (plastic-like) state • Curing (cross-linking) occurs inside the mold under heat and pressure • Typically longer cycle times due to vulcanization • Mold temperatures often range from 150–200°C (302–392°F) • Cannot be remolded or recycled once cured

Molding Thermoplastics Thermoplastics, on the other hand, melt when heated and solidify when cooled. The process is physical, not chemical. Key Characteristics: • Uses standard plastic injection molding machines • Material is melted and injected into the mold • Cooling and solidification occur in the mold (no chemical change) • Faster cycle times compared to EPDM • Mold temperatures vary based on material (often 50–120°C) • Thermoplastics can be reprocessed and recycled

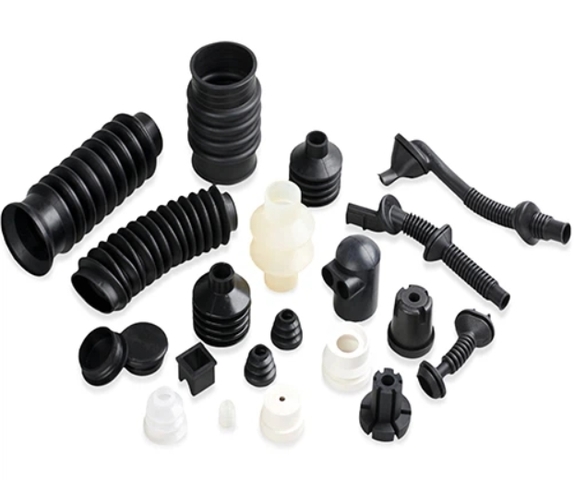

1. Applications: EPDM vs. Thermoplastics EPDM Applications EPDM is widely used in applications that require weather resistance, sealing, or high flexibility over time. Common Uses: • Automotive weatherstripping and seals • HVAC gaskets and seals • Roof membranes • Electrical insulation • Industrial hose and tubing • Washing machine door seals

Thermoplastics Applications Thermoplastics are used in a much broader range of applications because they can be engineered to exhibit a wide range of properties. Common Uses: • Consumer electronics housings • Automotive interior and structural parts • Medical devices • Packaging • Household goods • Toys • Appliances

1. Design Considerations EPDM Design Guidelines Designing for EPDM injection molding requires attention to cure time, venting, and parting lines. • Avoid sharp corners to minimize stress points. • Include vents to allow gases to escape during curing. • Allow for shrinkage and post-curing expansion.

Thermoplastic Design Guidelines Designing for thermoplastics focuses on wall thickness, draft angles, and material flow. • Maintain uniform wall thickness to prevent warping. • Use proper draft angles for easier demolding. • Include ribs and gussets for strength without added weight.

1. Cost Comparison

While the per-part cost of EPDM may be lower in raw material terms, the longer cycle time and complex tooling requirements often make thermoplastics more cost-efficient for high-volume production.

1. Environmental Impact EPDM: • Not recyclable after curing • Less favorable from a sustainability standpoint • However, EPDM has a long lifespan, reducing replacement waste

Thermoplastics: • Thermoplastics are recyclable, which is a major advantage • Post-consumer recycling infrastructure is well-established • Biodegradable and bio-based alternatives are emerging (e.g., PLA)

1. Hybrid Materials: TPE as the Middle Ground If you’re looking for rubber-like flexibility with thermoplastic processability, TPEs (Thermoplastic Elastomers) offer a viable compromise. These materials can be injection molded like thermoplastics while offering some of the softness and elasticity of EPDM. • Advantages: Faster cycle time, recyclable, no curing needed • Limitations: May not match EPDM’s heat and weather resistance

2. Choosing Between EPDM and Thermoplastics The decision comes down to performance requirements, production volume, budget, and end-use environment. Choose EPDM if: • You need long-term weather, ozone, or UV resistance • You need a flexible seal or gasket • The part will experience compression and rebound

Choose Thermoplastics if: • You need high-volume, low-cost production • The part requires precision and a smooth finish • Recycling or reusability is important

Conclusion Both EPDM and thermoplastics have critical roles in injection molding, but they are suited to very different applications. EPDM offers durability, flexibility, and weather resistance that thermoplastics often can't match—especially in seals and outdoor environments. However, thermoplastics win in terms of speed, design flexibility, cost-efficiency, and sustainability. Choosing the right material involves balancing functional requirements with manufacturing realities. By understanding the key differences outlined in this article, you can make more informed decisions that optimize product performance, cost, and longevity.
