Why Metal Injection Molding Matters, Metal injection molding (MIM) is a revolutionary production technology that bridges the gap between traditional metalworking and modern precision manufacturing. By combining plastic injection molding techniques with metal powders, manufacturers can create complex, high-performance metal components in large quantities. In Germany, a country known for precision engineering, automotive excellence, and medical technology leadership, metal injection molding has gained significant importance. From producing miniature gears for vehicles to surgical instruments and aerospace components, MIM enables the creation of parts that are both cost-effective and high-quality. This guide will provide you with a comprehensive overview of metal injection molding—covering process steps, materials, advantages, applications, costs, and future trends, with a focus on the German and European manufacturing market.
The Basics: What Is Metal Injection Molding? Metal injection molding is a powder metallurgy process that uses fine metal powders mixed with a binder material. The mixture, known as feedstock, is injected into a mold under high pressure. After molding, the binder is removed, and the part is sintered at high temperatures to achieve full metal density. In essence, MIM combines the design freedom of plastic injection molding with the strength and performance of metals. This makes it an ideal solution for industries where precision, strength, and complexity are required simultaneously.

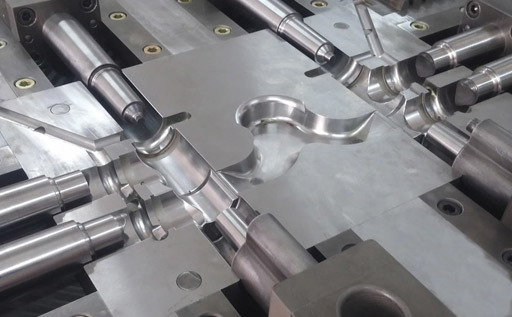

Step-by-Step: The Metal Injection Molding Process 1. Feedstock Preparation The process begins with the creation of feedstock. Ultra-fine metal powders (particle sizes often below 20 microns) are mixed with a thermoplastic binder. The binder provides plasticity and allows the material to be injected. Key factors: • Powder size and shape influence density and surface finish. • The binder ratio typically ranges from 30–40%. • Homogeneous mixing is essential for consistency. 2. Injection Molding The prepared feedstock is injected into a precision mold using standard injection molding machines. This allows for high-volume production with excellent repeatability. Benefits of this stage: • Net-shape manufacturing: minimal machining required. • Ability to produce thin walls, sharp edges, and complex geometries. • Scalability for thousands or millions of identical parts. 3. Debinding After molding, the binder must be removed without damaging the fragile part. This stage is known as debinding. Common debinding methods: • Solvent debinding – dissolves certain binder components. • Thermal debinding – gradual heating removes remaining binder. The result is a porous “brown part” that is very delicate and requires careful handling. 4. Sintering The brown part is placed in a high-temperature furnace, typically ranging from 1200–1600°C depending on the alloy. During sintering: • The metal particles fuse together. • The part shrinks by 15–20%. • The final density reaches 95–99% of wrought metal. This step gives the component its mechanical strength, hardness, and final dimensions. 5. Post-Processing (Optional) Although MIM parts usually come out finished, some applications require additional steps such as: • Heat treatment for enhanced mechanical properties. • Coating or plating for corrosion resistance. • CNC machining for ultra-tight tolerances.
Advantages of Metal Injection Molding 1. Design Flexibility MIM allows engineers to create shapes that would be impossible or uneconomical with machining or casting. 2. Cost Efficiency at Scale Once molds are created, the per-part cost decreases significantly, especially for medium to large production volumes. 3. High Strength & Density MIM parts are nearly as strong as forged metals, making them suitable for demanding applications. 4. Material Versatility A wide range of metals and alloys can be used, including stainless steel, titanium, and nickel alloys. 5. Minimal Waste Unlike machining, which removes large amounts of material, MIM uses material very efficiently, reducing waste.
Materials Used in Metal Injection Molding One of the reasons MIM is so popular is the diversity of materials available. Here are some of the most commonly used alloys: • Stainless Steels (316L, 17-4 PH) – Ideal for medical and food-grade applications due to corrosion resistance. • Titanium & Titanium Alloys – Lightweight, biocompatible, and widely used in implants and aerospace. • Low-Alloy Steels – Common in automotive parts for strength and toughness. • Nickel & Cobalt-Based Alloys – Withstand high temperatures and wear, perfect for turbines and aerospace engines. • Magnetic Materials – Soft magnetic alloys for sensors and electronics. • Tungsten & Carbides – Extremely hard, suitable for wear-resistant components.
Applications of Metal Injection Molding MIM is used in a wide range of industries. In Germany, where engineering and manufacturing dominate, the following sectors are most active: Automotive Industry • Gears and transmission parts • Turbocharger components • Locking mechanisms and fasteners Medical Industry • Surgical instruments • Dental brackets and tools • Titanium implants Aerospace and Defense • Lightweight brackets and housings • High-temperature engine parts • Precision weapon components Consumer Electronics • Smartphone components • Laptop hinges • Watch cases Industrial Tools & Machinery • Cutting tools • Injection nozzles • Hydraulic parts
Cost of Metal Injection Molding The cost of MIM depends on several factors: • Mold creation – Initial investment is high but amortized over production volume. • Material type – Exotic alloys like titanium are more expensive. • Production volume – Economical at 10,000+ units per year. • Design complexity – More complex parts may require higher mold costs. ✅ In Germany, MIM is particularly cost-effective for automotive and medical industries, where volumes are high and complexity is essential.
Quality Control in Metal Injection Molding Since MIM parts are used in critical industries, strict quality assurance is essential. Methods include: • Dimensional inspection – Using CMM (Coordinate Measuring Machines). • Density testing – Ensures sintered parts reach required density. • Mechanical testing – Tensile, hardness, and fatigue tests. • Non-destructive testing (NDT) – X-ray and ultrasonic methods for internal defects.
Environmental Benefits of MIM Sustainability is becoming a key factor in German manufacturing. MIM contributes by: • Reducing raw material waste (compared to machining). • Enabling lightweight designs (reducing fuel consumption in cars & planes). • Using recyclable materials like stainless steel and titanium. With Germany’s focus on green technology, MIM aligns perfectly with long-term industry goals.
The Future of Metal Injection Molding in Germany and Beyond As we move into 2025 and beyond, several trends are shaping the MIM industry: 1. Medical Growth – Titanium implants and surgical devices are driving demand. 2. Electric Vehicles (EVs) – Lightweight, durable components for motors and battery systems. 3. Hybrid Manufacturing – Integration of MIM with additive manufacturing for faster prototyping. 4. Automation & Industry 4.0 – Robotics and AI-driven quality control improving efficiency. 5. New Materials – Development of high-performance alloys for aerospace and energy industries.
FAQs About Metal Injection Molding 1. Is metal injection molding expensive? It has a high upfront mold cost but is very cost-effective for medium to large volumes. 2. What is the minimum order volume for MIM? Typically, 5,000–10,000 parts per year is where MIM becomes economical. 3. How strong are MIM parts compared to machined parts? MIM parts reach 95–99% density, with mechanical properties similar to wrought metals. 4. Can MIM replace 3D metal printing? Not entirely. 3D printing is better for prototyping and low-volume complex parts, while MIM excels in high-volume production. 5. Is MIM environmentally friendly? Yes, it reduces waste and supports Germany’s sustainable manufacturing goals.
Conclusion Metal injection molding (MIM) is more than just a production method—it’s a strategic manufacturing solution for industries that demand precision, efficiency, and innovation. By offering design freedom, high material performance, and cost efficiency, MIM is revolutionizing production in Germany’s automotive, medical, aerospace, and electronics sectors. As 2025 unfolds, MIM is expected to become even more important in the global supply chain, helping companies achieve sustainability, cost-effectiveness, and high performance. If you’re looking for a way to produce complex, high-strength metal components at scale, metal injection molding is one of the most competitive solutions available today.
