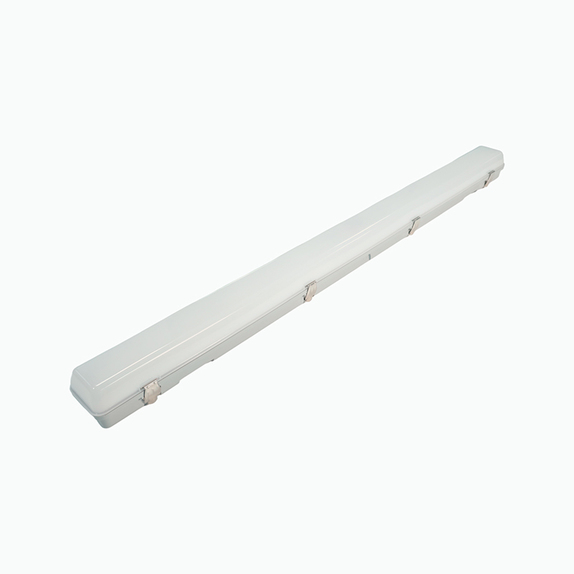

A LED Batten light (aka LED batten fixture) is a slim, linear surface-mounted luminaire that provides long, even lighting for general and task lighting. Think of it as a modern take on the classic fluorescent strip — but with LED chips, compact drivers and better control over glare and uniformity.
In simple terms: it’s a long, narrow light you mount on a ceiling or wall to brighten corridors, car parks, warehouses, stairwells and more — with lower energy use and less maintenance than old lamps.
Quick definition — LED batten light explained An LED batten light consists of three simple parts: an LED light engine (SMD LEDs on a PCB), a diffuser that softens the beam and a driver that converts mains power into steady LED current. Modern batten fixtures use LM-80 approved SMD2835 chips, have colour temperatures from 3000K to 6000K and aim for even light distribution with a ~120° beam angle.
How an LED batten fixture works (simple) LED chips on a metal core PCB emit light when the driver supplies constant current. The diffuser evens out hotspots and reduces glare. Some battens have an external or split type driver for easy replacement and maintenance.
What to look for in an LED batten light Ingress & impact protection — IP65/IP66 and IK08/IK10 ratings for wet or harsh areas.
Optics — high transmittance PC milky diffusers (e.g. 86–88%) for soft, even light.
Sensor options — microwave/HF 5.8G or PIR sensor dimming (e.g. 100%–20%–OFF) for energy savings.
Emergency versions — integrated battery backup (e.g. >3 hours at 3.6W with a 3000mAh LiFePO4 pack).
Installation flexibility — surface mount, hanging or linkable run-to-run connections with quick wiring terminal blocks.
Serviceability — clip fixed drivers, split type power supplies and large terminal blocks for easy maintenance.
Performance specs that matter (and why) Lifespan: L70 ≈ 54,000 hours is common — means the light will keep most of its brightness for years.
CRI: >80 gives truer colours in retail and public areas.* CCT: 3000K / 4000K / 5000K / 6000K to match warmth or coolness of the space.
Lumen efficacy: modern batten families are typically in the 118–150 lm/W range (varies by series and optics) — check the product series for exact numbers. These specs affect maintenance intervals, perceived brightness and how natural colours look under the light.
LED batten light vs other linear luminaires Compared to bigger or recessed linear fixtures, battens are easier to install and replace. Compared to old fluorescent battens:
start instantly with no flicker,
run cooler,
need less maintenance cycles and
work seamlessly with sensors and emergency options.
Typical applications — where LED batten lights shine
Underground parking & ramps — IP/IK versions for dust and impact resistance.
Warehouses & workshops — linkable and high-uniformity models for long runs.
Stairwells and corridors — sensor dimming and emergency models for safety and energy savings.
Metro stations, tunnels, ships — vapor-tight or P-Series style fixtures with secure sealing and long battery-backed emergency options. (Manufacturers often have product lines for each of these applications.)
Choosing the right LED batten light — quick checklist
Environment: wet/dirty → IP65/IP66; impact-prone → IK08/IK10.
Control needs: do you need motion sensor dimming, central control or a self-test emergency unit?
Light quality: CRI>80 and CCT that matches your space usage.
Serviceability: split drivers or clip-fixed drivers for quick field replacement.
Form factor & runability: continuous runs → linkable designs and robust terminal blocks.
Warranty & approvals: 5-year warranty and CE/RoHS/SAA or equivalent approvals.
Real product capabilities (what manufacturers offer)
Many series for professional projects have:
Sensor-dimming versions (microwave or HF 5.8G) with remote-setting or preset profiles.
Emergency backup options (3h+ autonomy with LiFePO4 battery packs).
Multiple lengths 2FT, 4FT, 5FT and modular combineable sizes for long runs.
High-transmittance milky PC diffusers (around mid-80%+) for softer illumination and glare control.
Terminal blocks for faster wiring and safer installation.
Example model naming conventions are power and length (e.g., 18W 2FT, 36W 4FT, 44W 5FT) with "-DS" or "-EM" suffix for sensor-dimming and emergency models.
Installation & maintenance tips (short)
Use the manufacturer’s quick wiring terminal and follow the split-type-driver guidance to reduce downtime.
For continuous runs, check the linkable connector polarity and sealing to avoid moisture ingress.* Test emergency versions after installation and during scheduled maintenance to check battery health.
How to buy or customize LED batten fixtures
If you need custom lengths, sensor profiles or emergency settings, work with suppliers that offer:
multiple dimming protocols,
battery options and self-test emergency units,
alternative mounting kits (surface/hanging/linkable). Look for technical support teams that can provide wiring diagrams, photometry and onsite commissioning advice.
To see a range of professional options and configurations, check the manufacturer’s LED batten lights product category — it lists standard and customizable families for parking, warehouse, tunnel and retail applications. (Anchor: LED batten lights — visit the product category for series and specs.)
Conclusion
An LED batten light is a versatile, efficient and low-maintenance solution for many commercial and industrial applications. Choose a model by IP/IK, lumen output, CCT, control options and maintenance features for your site — then choose a supplier that offers sensor, emergency and linkable options for the best long-term value.
